Description
Firing range*: 1230-1270ºC / Cone 6-8
Biscuit temperature: 1000ºC / Cone 06
Water content: 22%
Plasticity (IP Atterberg): 11
Carbonate content (CaCO3): 0%
Drying shrinkage: 5.8%
Firing shrinkage 1250ºC: 11.2%
Porosity (water absorption) 1250ºC: 0.0%
Dry bending strength: 3.1 N/mm2
Fired bending strength 1250ºC: 51.5 N/mm2
Thermal coefficient 1250ºC (25-500ºC): 63.7×10^-7ºC^-1

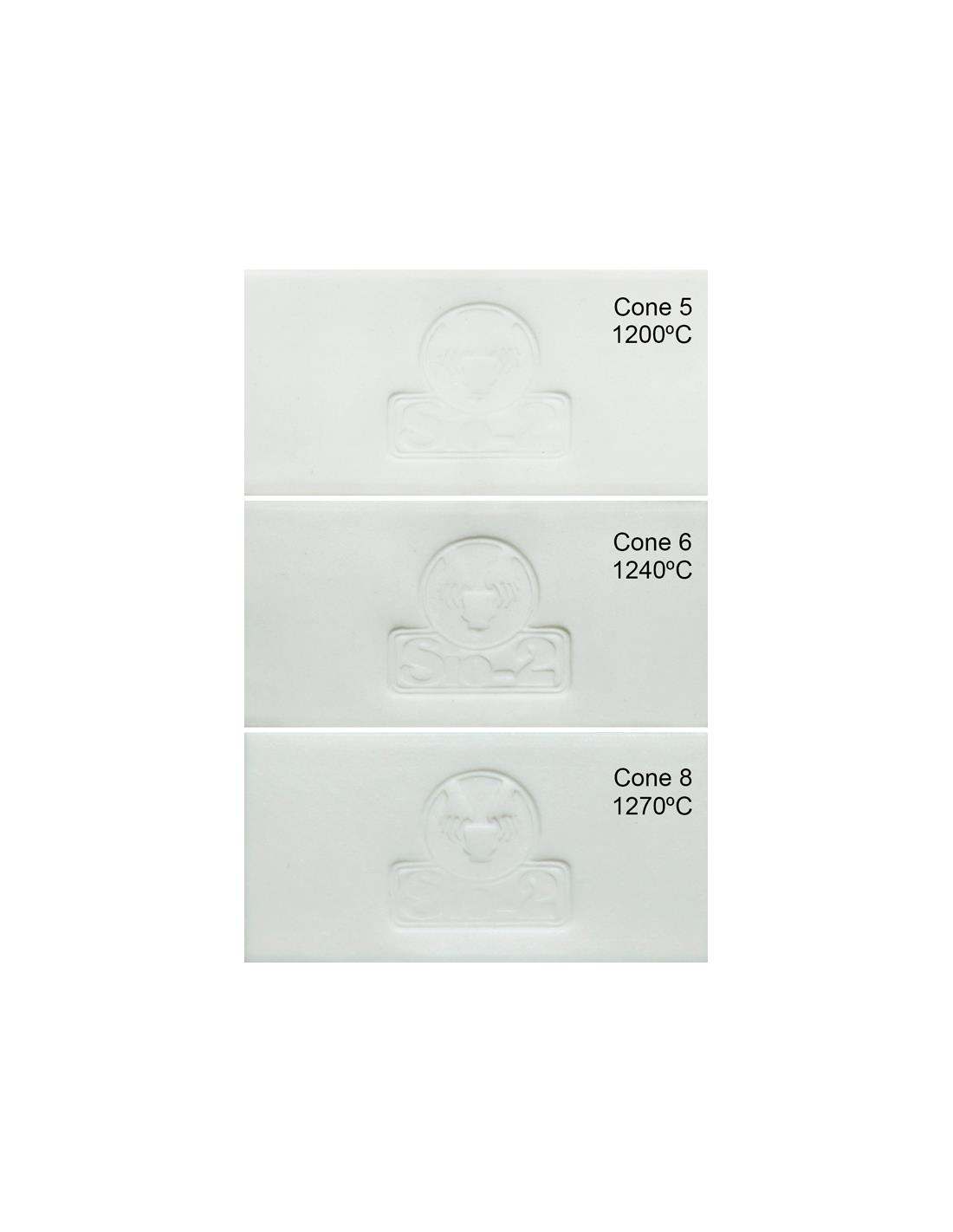

(*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.
There are no reviews yet.
